M-90-AL - 2 x 72 - Tilting Belt Grinder - fully assembled

M-90-AL
Tilting 2x72 belt grinder chassis. Vertical or horizontal grinder positions. Comes fully assembled with everything in the first or second picture, depending on which belt tension system you choose at checkout.

---Lead time:
Grinder frames without accessories usually ship within 2-3 days.

----Choose from either my ratchet style belt tensioner or the Suspa USA brand gas shock belt tension system. It boils down to personal preference.  The ratchet system is nice because it will never wear out.

The M-90-AL grinder chassis accommodates the industry standard 1.5-inch square tooling bar, so if you already have your own attachments like a flat platen, contact wheel, small wheel attachment, etc, you can use them on this grinder frame. If you're just starting out, I offer a range of accessories to compliment this grinder chassis. Thanks for looking.

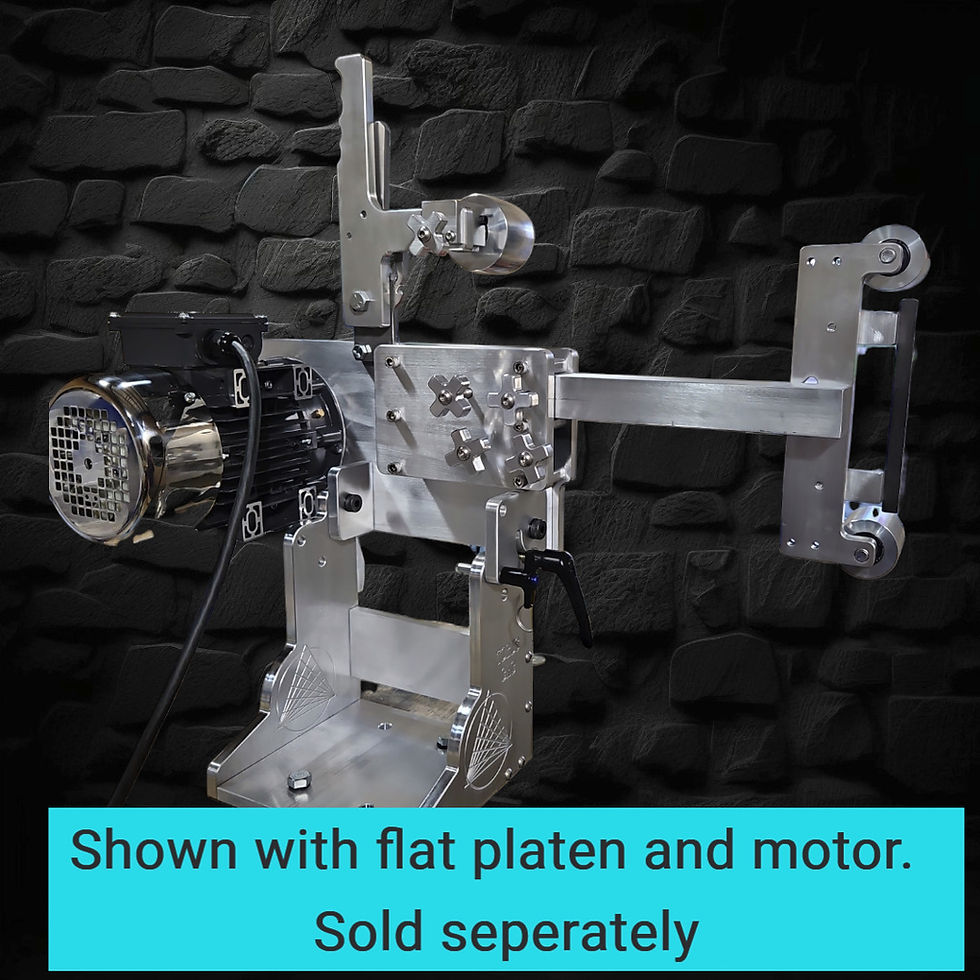

** The following are sold separately, they are shown for reference only in this listing:

--- 1hp variable speed with KBMA 24 vfd wired for 120v single phase.
--- 1.5hp variable speed with KBAC 27D vfd wired for 120v single phase.
--- 2hp variable speed with KBAC 27D vfd wired for 220v single phase.

--- 4-inch or 7-inch drive wheel.
--- Flat Platen attachment w a 17-inch 1.5-inch solid aluminum tooling bar.

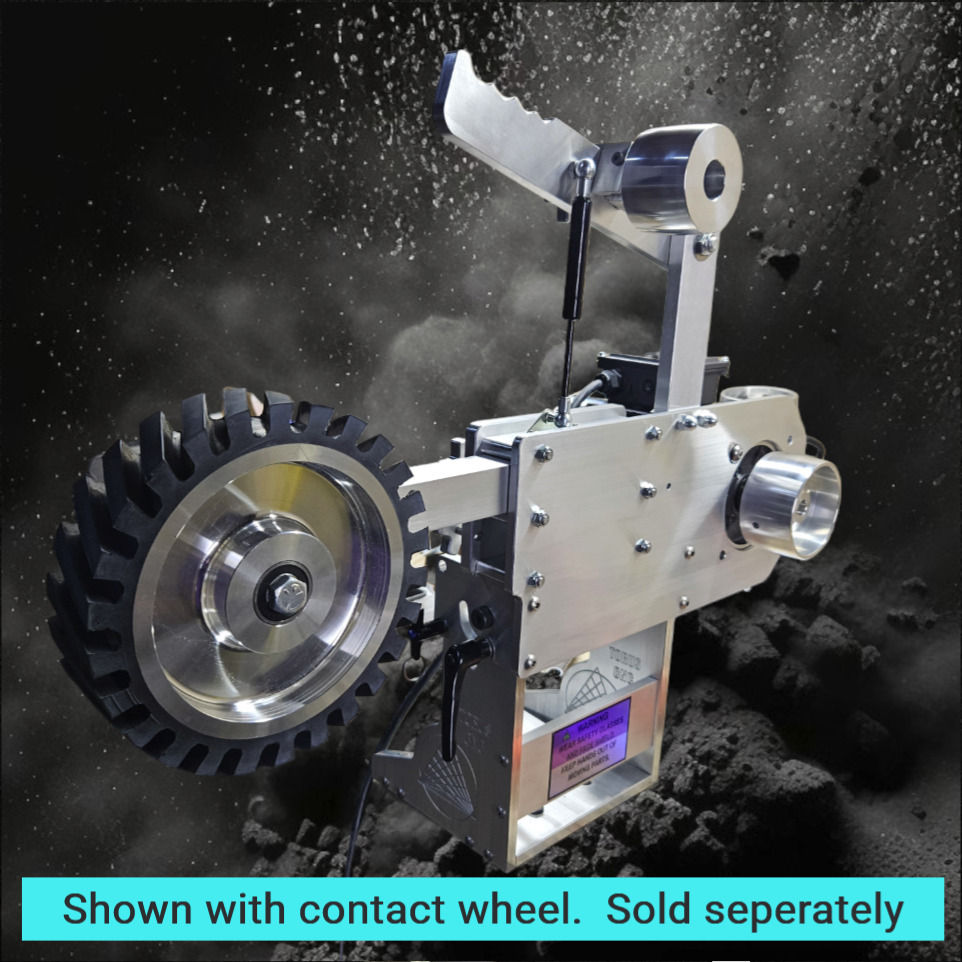

--- 8in contact wheel attachment.
--- Adjustable work table attachment.
--- Small wheel attachment.

*Note: Ships in 5-15 business days from time of order. Depending on the number of backlogged orders and the amount of add ons to your grinder build. Grinder frames without accessories usually ship within a few days.


Features:

+6061 Aluminum grinder body components.
+Ratchet lock belt tension system as found on other high-end 2x72 grinders. 304 stainless steel.
+Suspa USA brand gas shock belt tension system.
+90 Degree tilt function
+Hardware is either stainless steel, Plated Grade 8, or alloy steel precision shoulder bolts.

Loosen the handle and pull the pin, and you'll be fully equipped to grind in either the vertical or horizontal position. Easy belt changes are achieved with the 304 stainless steel rachet mechanism .

The components are machined from 6061 aluminum for strength, rigidity, and corrosion resistance. This frame easily handles the hp. The base has a larger footprint than on the previous m90. This reduces flex from the wood or metal table top and, in turn, increases stability.

It will beckon from your shop, yearning to throw sparks as you create something awesome from the depths of your creativity.

Thanks for looking, but don't stop there. Take the "plunge" and don't look back!

Have a good one.

Rich
